Mechanics

Demonstration kit Flight and flying


The kit contains apparatus and resources for demonstrating the fundamental processes and relationships which make flying possible due to static or dynamic lift and by reaction engines.
Using a hot-air balloon as an example, it is possible to impressively yet simply explain and illustrate that particular form of flight.
The response of differently shaped bodies in the presence of a flow of air is investigated using various experiment set-ups, and thereby a more detailed understanding of the pressure and air
resistance arising can be gained.
A model rocket can be used to demonstrate how rockets fly even without the presence of an atmosphere.

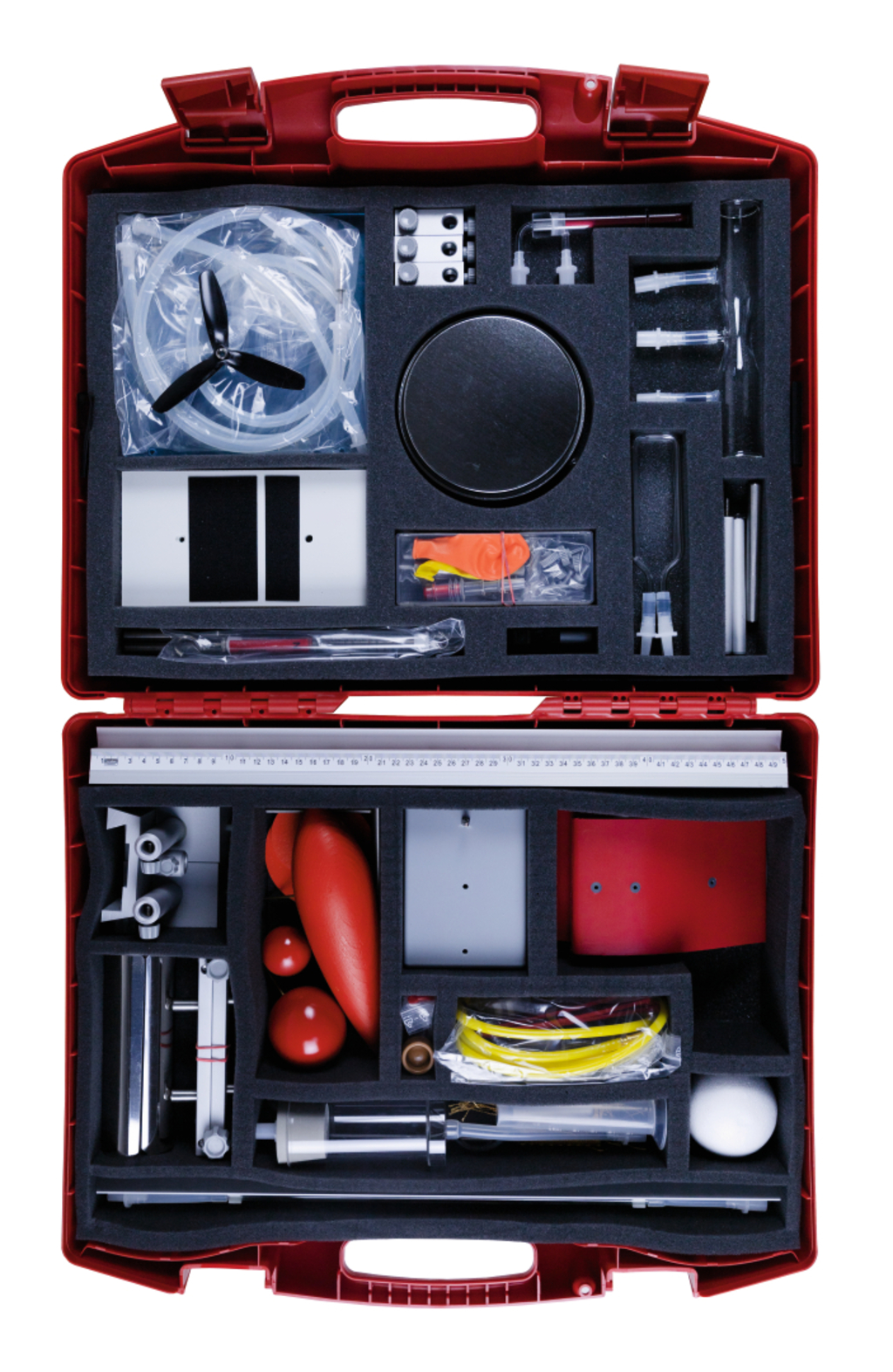

The picture shows a red suitcase filled with various experimental materials for educational purposes. The materials include measuring instruments, models and experimental utensils suitable for scientific teaching purposes.
The picture shows a red suitcase filled with various experimental materials for educational purposes. The materials include measuring instruments, models and experimental utensils suitable for scientific teaching purposes.
The picture shows a red suitcase with experimental materials on the topic of "flight and flying". The suitcase contains various components and a manual that are suitable for practical experiments in the educational field.
The picture shows an experimental device with a slanted tube that leads a liquid into a transparent chamber. Next to the tube are various connections and an electrical device that presumably serves to control the experiment.
The picture shows an experimental device consisting of a fan and a transparent display panel. It is used to demonstrate air flow and aerodynamic principles in education.
The picture shows instructions for an experiment set entitled "Flight and Flying" offered by Cornelsen Experimenta. It serves as a demo set for teaching in the German educational system and offers practical experiments on the subject of flight.
The image shows an assorted toolbox with various experimental supplies, including glass tubes and a round, reflective container. The supplies are neatly arranged in a foam-padded compartment, indicating careful presentation.
The picture shows a shelf on which various experimental materials for educational purposes are arranged. Among other things, you can see a transparent tube, metallic components and red elements that are probably used for chemical experiments.
The picture shows a suitcase with experimental materials suitable for conducting scientific tests. Inside there are various red objects, including an elongated shape and several balls, as well as some other utensils.
The picture shows an overview of articles from a catalog on the topic of "flight and flying". The list contains various experimental materials with the corresponding article names and order numbers.
The picture shows instructions for setting up an experiment on the topic of flight and flying. It shows schematic representations of holders for a force gauge, resistance bodies and the mounting points of the experimental setup.
The picture shows an experimental setup for an inclined tube manometer, consisting of an inclined plate, a measuring container and connecting tubes. It is a guide for carrying out an experiment in the field of physics and fluid dynamics.
The picture shows a collection of experimental accessories, including rails, various brackets and measuring devices. Also included in a red case are instructions and materials used for practical experiments in education.

item number 29008

order
Share product on:

Technical specifications

Size of kit: 540 x 450 x 150 mm

In this experiment, the students use the Venturi tube to measure the flow velocity.


The students observe what happens to a hot air balloon when it is filled with air using a heating device.


In this experiment, the students fan air into a solar balloon.


We will shortly provide you with a description of the experiment at this point.


The experiment impressively demonstrates the effect of dynamic lift.


In this experiment, the students examine the flow velocity.


We will shortly provide you with a description of the experiment at this point.


We will shortly provide you with a description of the experiment at this point.


We will shortly provide you with a description of the experiment at this point.


In this experiment, the pressure differences on a wing are examined and observed.


In this experiment, the pressure distribution on an airfoil is examined and observed.


Measurement of dynamic buoyancy using a buoyancy model and a solar balance.


A thread comb is held over the wing and the flow pattern is determined by observing the threads.


In this test, a carriage is held in the stop position and then a maximum air flow is set. The car is released and its behavior observed.


The students measure the flow resistance.


The students measure the air resistance of a wing and examine its dependencies.


In this experiment, the students observe the flow processes on resistance bodies.


An air screw is rotated and moved in the air flow. The students observe what happens when the plate is brought closer to the propeller.


How does an air screw work? In this experiment, an airfoil is held between the airflow generator and the propeller. the students examine the result.


The students measure the pulling force of an air screw.


In this experiment, an air screw is attached at right angles to the rail. The flow speed is increased while the air screw is observed.


We will shortly provide you with a description of the experiment at this point.


The students examine the recoil generated by a balloon.


The experiment impressively demonstrates the effect of dynamic lift.


  • 1 × Colouring agent, red for lab use only
  • 1 × Foam insert 1 for 29008, 495x350x25 mm
  • 1 × Foam insert 2 for 29008, 510x370x80 mm
  • 1 × Styrofoam ball, 70 mm Ø
  • 1 × Rocket model ROKIT
  • 1 × Scale 0.5 g to 1000 g, / 1 g to 2000 g
  • 1 × Tray 510x360x20 mm
  • 1 × Lidfoam grey,515x355x10mm
  • 1 × Solar zeppelin
  • 1 × Air pump with transparentcylinder
  • 1 × Rubber balloons, 100 pcs.
  • 1 × Mini-hot-air balloon ca.40x32 cm, w. manual
  • 1 × Esbit burner, nickelplate
  • 1 × Dry combustibles ESBIT 20 tablets
  • 1 × Plastic box, 140x50x25mm
  • 1 × Silicone oil, 10ml
  • 1 ×
  • 1 ×
  • 1 ×
  • 1 × Storing diagram,int.vers.(Flight and Flying)
  • 1 × Air foil model
  • 1 × Lifting power model
  • 1 × Airscrew
  • 1 × Support rod for 29056/ 43025/44583
  • 1 × Pressure gauge setup
  • 1 × Prandtl tube
  • 1 × Venturi tube w. couplings
  • 1 × Set (3) U-tube manometers
  • 1 × Thread comb
  • 2 × Stand rod 250x10 mmØ stainless steel
  • 1 × Stand rod 100x10 mmØ stainless steel
  • 3 × Bosshead with slit
  • 1 × Dynamometer, 200 mN
  • 1 × Plastic case ca.540x450x150 mm
  • 1 × Holding clip on rod, 15 mm Ø
  • 1 × Carriage with two rods
  • 1 × All purpose rail, 500 mm
  • 1 × Rider with clamping tube 30 mm
  • 2 × Rider with clamping tube 75 mm
  • 1 × Heat stack, 150 mm
  • 1 × Metal plate, 150 mmØ
  • 1 × Measuring cylinder, PP, 25 ml
  • 1 × Pair of adjustable feet for rails
  • 1 × Holding clip on rod, 25 mm Ø (rod=100x10 mm)
  • 1 × Holding clip on rod, 45 mm Ø (rod: 60x10 mm)
  • 1 ×
