Mechanics

Air stream generator


To produce a whirl free, homogenous air flow for aero-dynamic experiments. Radial blower in metal case with adjustable suction opening, long air stream rectifier, on wooden base with switch and mains cable, suitable for horizontal and vertical operation.

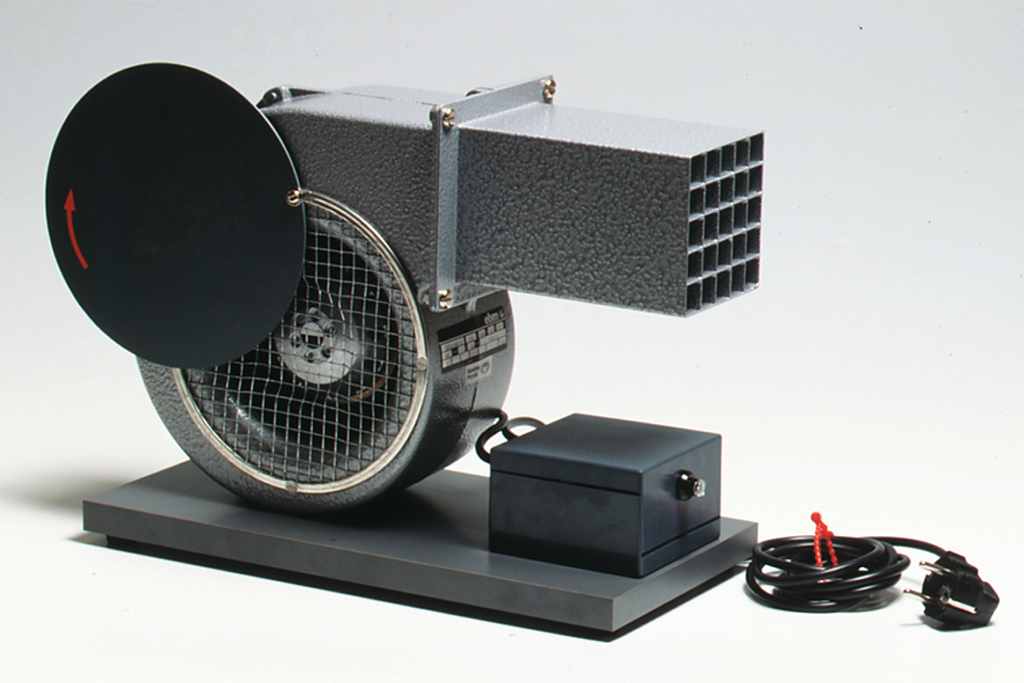

The picture shows an experimental device in the form of a fan with a round lid and a rectangular outlet. The device is operated with a power cable and is suitable for educational purposes in the field of physics or technology.
The picture shows an experimental device in the form of a fan with a round lid and a rectangular outlet. The device is operated with a power cable and is suitable for educational purposes in the field of physics or technology.

item number 29010

order
Share product on:

Technical specifications

Max. air speed: 14 m/s

Air outlet opening: 90 x 90 mm

Height of the opening (centre) above the table surface: 230 mm

Operating voltage: 230 V, 50 Hz

Consumption: 65 W

Size: 400 x 200 x 290 mm

Mass: 5.5 kg
