Physics experiments on wave optics

Supplementary set for wave optics for pupils

The additional kit contains materials and devices for further seven basic experiments

The parts of the additional kit can be stored in the box of Optics 2.0.

Two optical instruments with scales are visible in the picture, with a glass plate next to them. Below the instruments are three different foils marked with the number of lines per millimeter.
Two optical instruments with scales are visible in the picture, with a glass plate next to them. Below the instruments are three different foils marked with the number of lines per millimeter.
The item pictured is an experimental device with a circular scale for reading angles, used in educational settings. There's an opening in the center through which light or other materials can potentially be passed.
On a white background lie two microscope slides, one of which contains a transparent sample. The sample appears to be a mineral object prepared for microscopic observation.
Presented are two gray frame elements with labels indicating the number of lines per millimeter: 300 and 80 lines/mm. These measuring instruments are likely intended for optical experiments or the study of light diffraction.
A gray surface depicts vertical red lines printed on a white sheet of paper. A small scale with centimeter markings is located in the center to measure the distances between the lines.

item number 47540

Share product on:

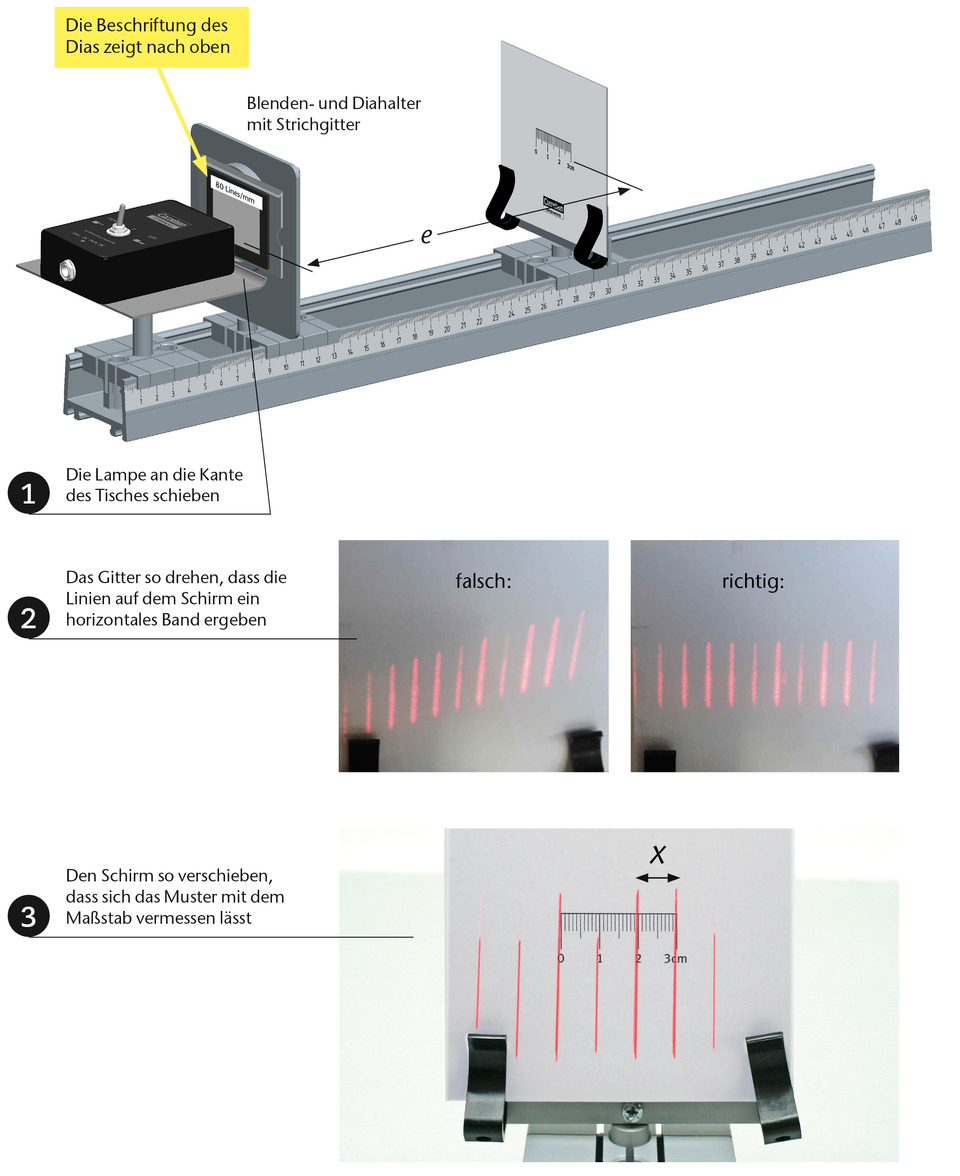

With the help of an optical grating, the wavelength of the laser of the student lamp is determined experimentally.

interference at the transmission grating

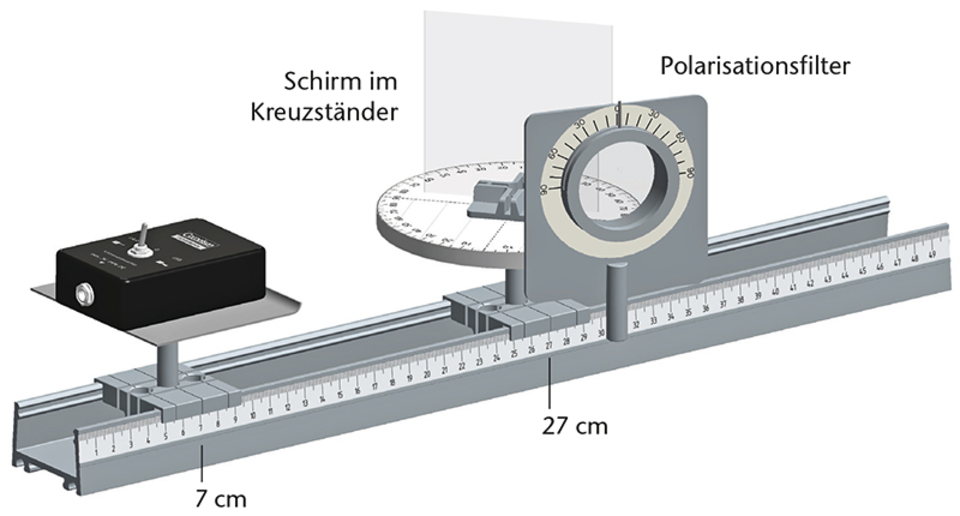

With two polarization filters, the laser and LED light of the student lamp is examined.

polarization

Three experiments on polarization at reflection (Brewster angle), voltage birefringence and chromatic polarization.

polarization effects

  • 1 × Plastic box, smooth 64x64x15 mm
  • 1 × folding box, 2 partitions180 x 125 x 80 mm
  • 1 × Mica in slide frame
  • 1 × Polarizer and analyzer in frame with short rod
  • 1 × Screen, translucent glass90 x 90 mm
  • 1 × Diffraction grating, 300 lines
  • 1 × Diffraction grating, 600 lines.
  • 1 × Diffraction grating, 80 lines
