Demonstration kit Solar thermal energy conversion


For demonstrating the fundamentals and technical applications of solar thermal energy conversion.
This kit contains apparatus for basic experiments on heat absorption, convection and radiation, as well as allowing the assembly of a complete solar collector with thermal siphon recirculation, pump circulation and heat exchanger.

The solar collector ...

  • converts energy radiated by the sun into heat using water to convey the energy.
    After shining the light on the collector for several minutes, it is possible to measure a distinct rise in temperature.
  • is used in conjunction with the included reflector projector, which acts as the source of energy.
  • has two removable front panes of glass to prevent convection losses.
  • has a blackened collector spiral with six loops and two connectors for rapid release hose couplings.
  • has interchangeable black and white painted rear  covers, expanded polystyrene insulation and a removable plexiglass pane at the rear.


Heat exchanger with pump circulation
With the help of the heat exchanger it is possible to transfer thermal energy from one liquid to another. It consists of a copper tubing coil in a transparent plastic beaker with quick-release hose couplings.
The conveyance of the water through the exchanger coil is aided by connecting a circulating pump to the collector.

Thermosyphon circulation
If the elevated tank is connected via the supplied hoses to the solar collector, there will arise a difference in density of the water dependent on the temperature which will cause convection to occur, thus circulating the water.

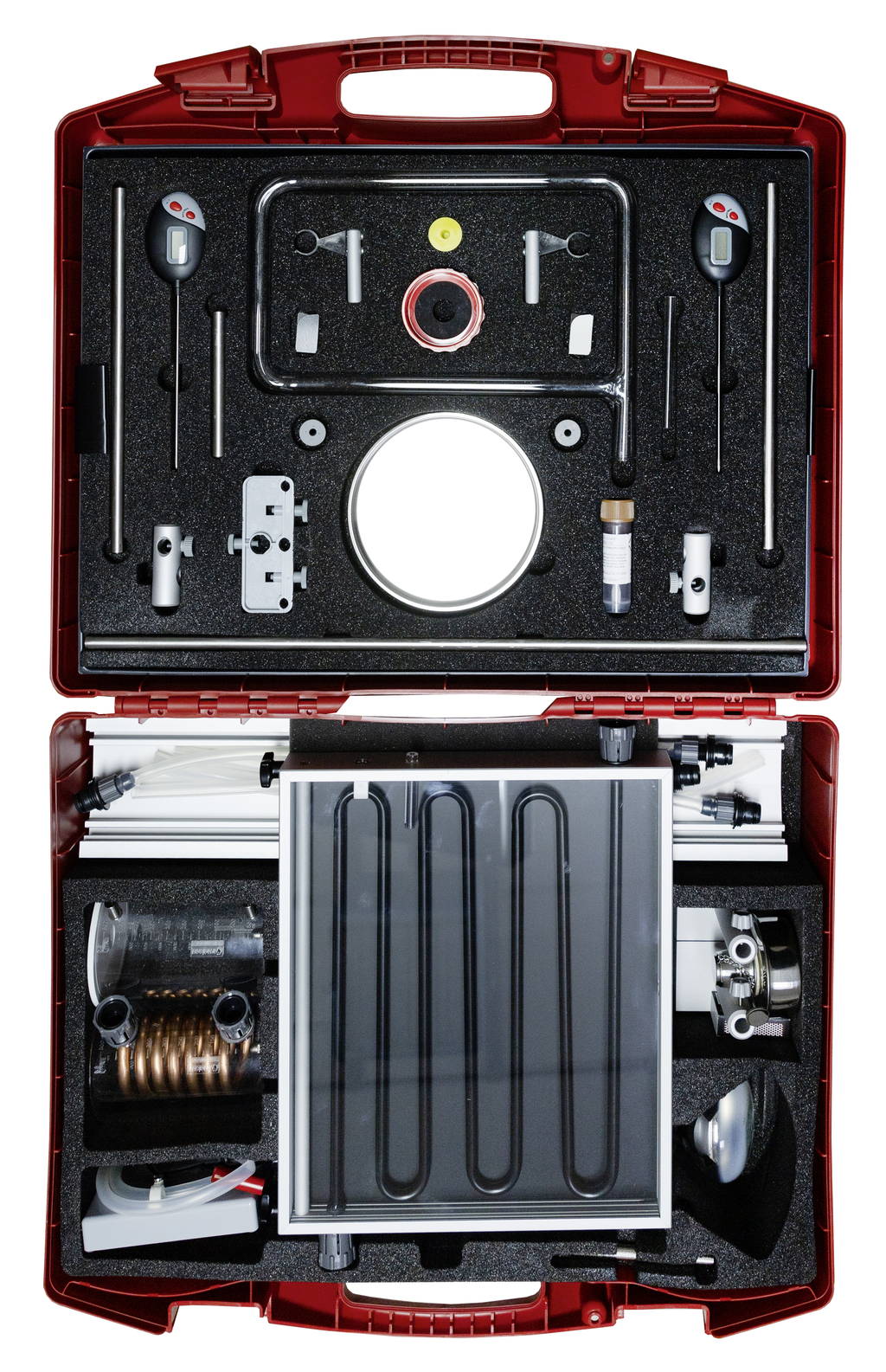

The picture shows an open red suitcase containing various scientific experiment tools and equipment. These include pipes, gauges, valves and a solar absorber, which are used for educational purposes in science classes
The picture shows an open red suitcase containing various scientific experiment tools and equipment. These include pipes, gauges, valves and a solar absorber, which are used for educational purposes in science classes
The picture shows a red suitcase with various components for solar thermal energy conversion. The upper half of the suitcase contains instructions, while the lower half is filled with tools and materials for experiments.
The picture shows a suitcase with various experimental equipment organized in foam-padded compartments. Among other things, you can see a cable, a lamp and metal parts that can be used for educational purposes.
The picture shows a plastic box filled with foam padding and containing several experimental technical components. You can see a transparent lid, metal parts and other objects that are used for experiments in education.
The picture shows a storage box with various experimental materials arranged on a foam-padded insert. Among the items are geometric shapes, glass tubes and other components that are used for scientific
The image shows a device lying in a padded case, presumably for experimental educational purposes. It has transparent components and several connectors, indicating a technically complex application.
The picture shows a physics experiment set consisting of two measuring instruments and a light source. The devices are mounted on a stable base, which has a marking line for taking measurements.
The picture shows an experimental setup with a lighting element on the right and a measuring device on the left, which is attached to a tripod. In the middle there is a horizontal base with colored markings that

item number 49355

order
Share product on:

We will shortly provide you with a description of the experiment at this point.


We will shortly provide you with a description of the experiment at this point.


We will shortly provide you with a description of the experiment at this point.


We will shortly provide you with a description of the experiment at this point.


We will shortly provide you with a description of the experiment at this point.


We will shortly provide you with a description of the experiment at this point.


  • 1 × Lid to 49385/49387
  • 2 × Digital-thermometer 210x40 mm, -50+300°C
  • 1 × Tray 510x360x20 mm
  • 2 × Rubber stopper 18/14 mm, 1 hole 5 mm Ø
  • 1 × Colouring agent, red for lab use only
  • 1 × Metal plate with clip, black
  • 1 × Metal plate with clip, white
  • 1 × Reflector lamp 175 W
  • 1 × Lidfoam grey,515x355x10mm
  • 1 × Spirit burner, metal
  • 1 × Tripod stand, 80 mm
  • 1 × Stand rod, 500x10 mmØ stainless steel
  • 1 × Power supply unit, clocked, 6 V/1 A DC
  • 1 × Convection tube 250x150 mm
  • 1 ×
  • 1 ×
  • 1 × Lamp holder ES on rod w.mains cable and switch
  • 2 × Holding clip on rod, right angled, 15 mm Ø
  • 1 × Holder for 55100/55110
  • 1 × Plastic case ca.540x450x150 mm
  • 1 × Elevated tank with two hoses
  • 1 × Cable fixer, velcro
  • 1 × Plastic tube 90mm
  • 1 × Metal plate, 150 mmØ
  • 1 × Pair of feet for rails
  • 2 × Rider with clamping tube 75 mm
  • 2 × Bosshead, double
  • 1 × Solar collector with rod(Demo-model)
  • 2 × Stand rod 250x10 mmØ stainless steel
  • 1 × Plug-in sleeve with reducing disk
  • 1 × Matches (10 cases)
  • 1 × Table, small 180x110 mm
  • 1 × All purpose rail, 500 mm
  • 1 × Heat exchanger vessel w.tubing and plug closure
  • 1 ×
  • 1 ×
