Mini-Kit ‘Heat’

Investigating Heat, Temperature and Heat Transfer Experimentally

Age: 8–14 years
Materials: for 1 work group or demonstration
Use: Experiments on temperature, evaporation and condensation, thermal radiation, heat conduction, and changes in volume and shape caused by heat

With the Mini-Kit ‘Heat’, students investigate fundamental phenomena of heat through practical experiments. The set is suitable for one work group and can also be used for classroom demonstrations.

The experiments cover the operating principle of a thermometer, evaporation and condensation, thermal radiation and the absorption of thermal radiation. Students can also compare the thermal conductivity of different materials and investigate heat conduction in water.

Further experiments demonstrate how heat affects materials. Students observe the change in volume of air and water vapour during heating and cooling, as well as changes in the shape of different metals when heated.

The equipment includes a thermometer, beaker, Erlenmeyer flask, glass tubes, a bimetallic strip, metal foils, tea lights and a burner.

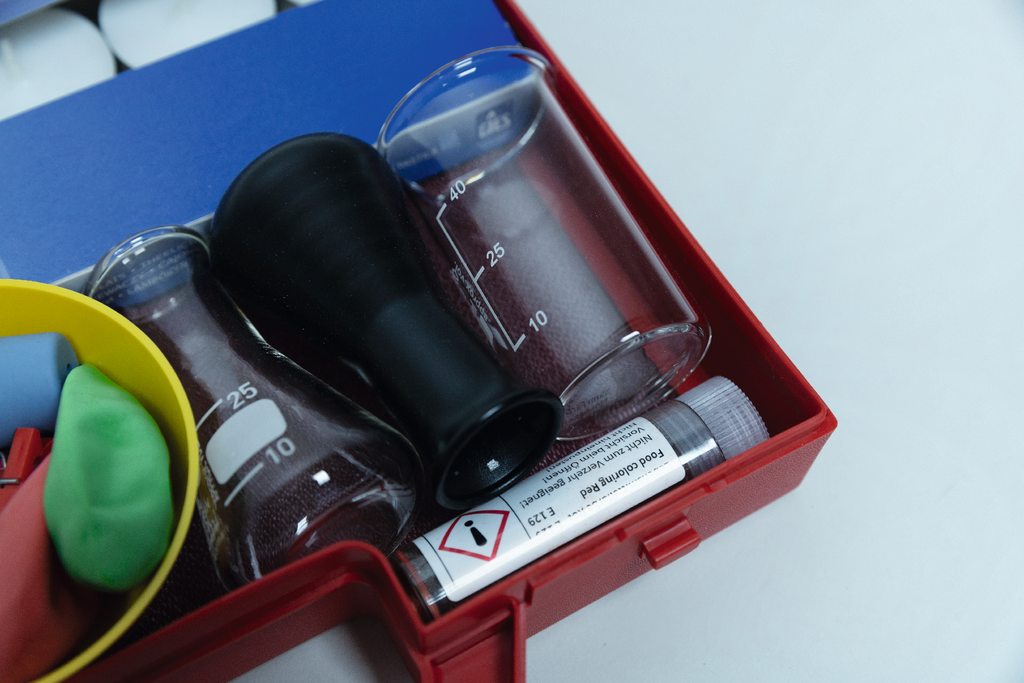

The picture shows a red plastic case filled with various materials for experiments. These include glasses, test tube plates, chemical equipment and other utensils needed for science lessons.

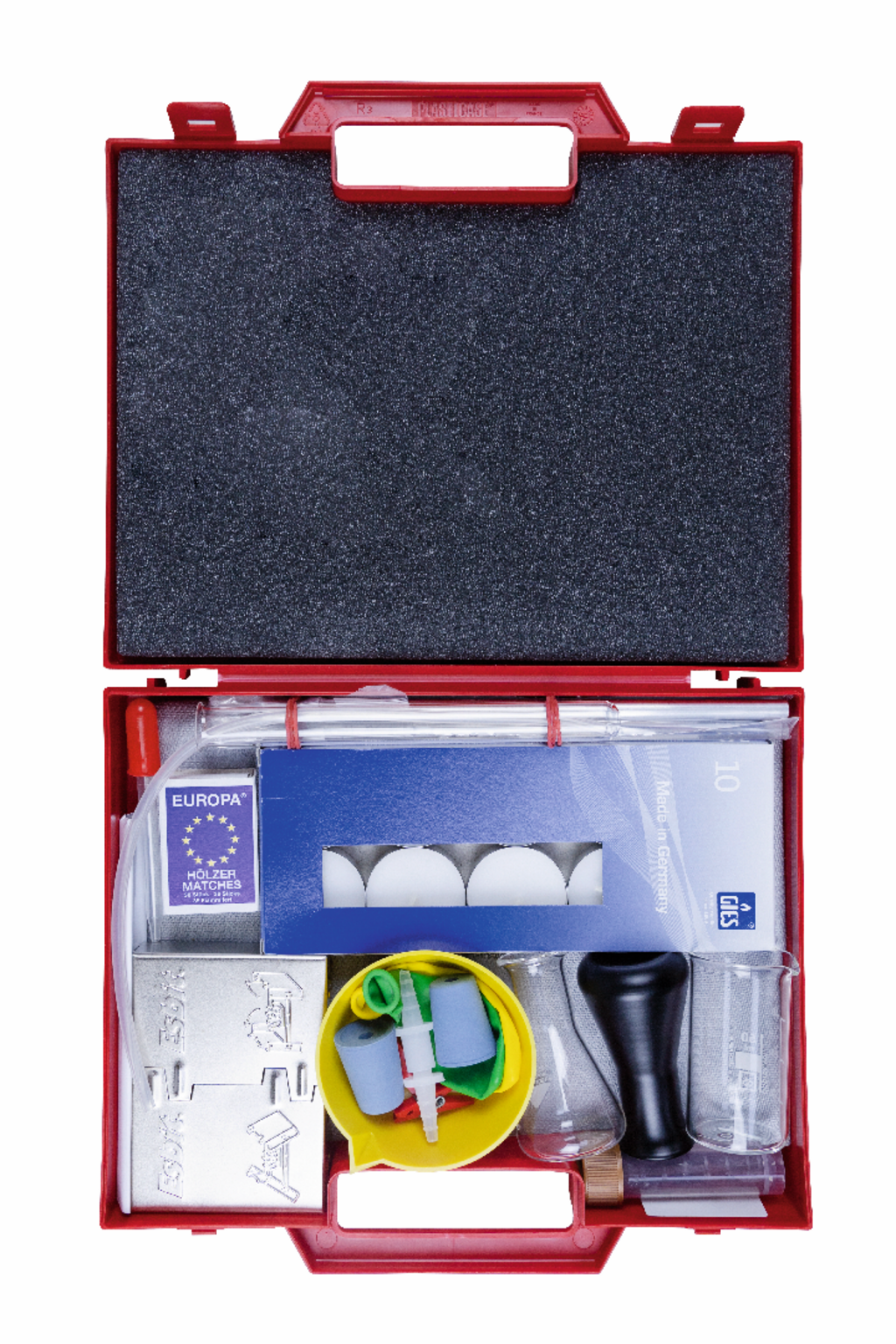

The picture shows a red plastic case filled with various materials for experiments. These include glasses, test tube plates, chemical equipment and other utensils needed for science lessons.

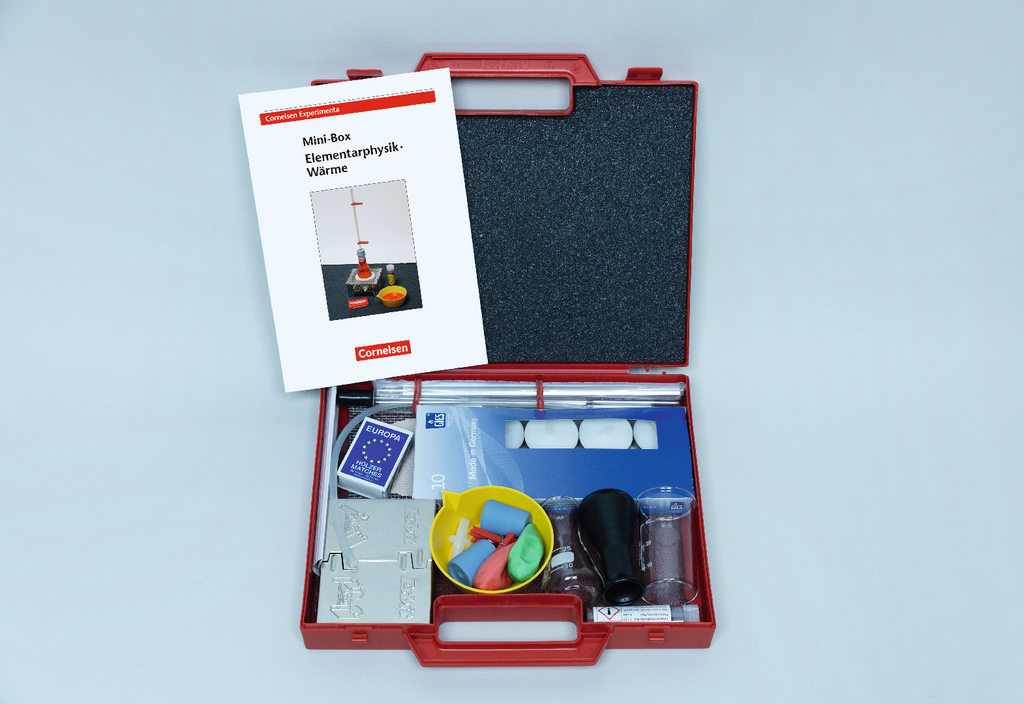

The picture shows a red box with experimental materials for teaching purposes that focus on elementary physics on the topic of heat. In the box there are various glass containers, models and a manual with instructions for experiments

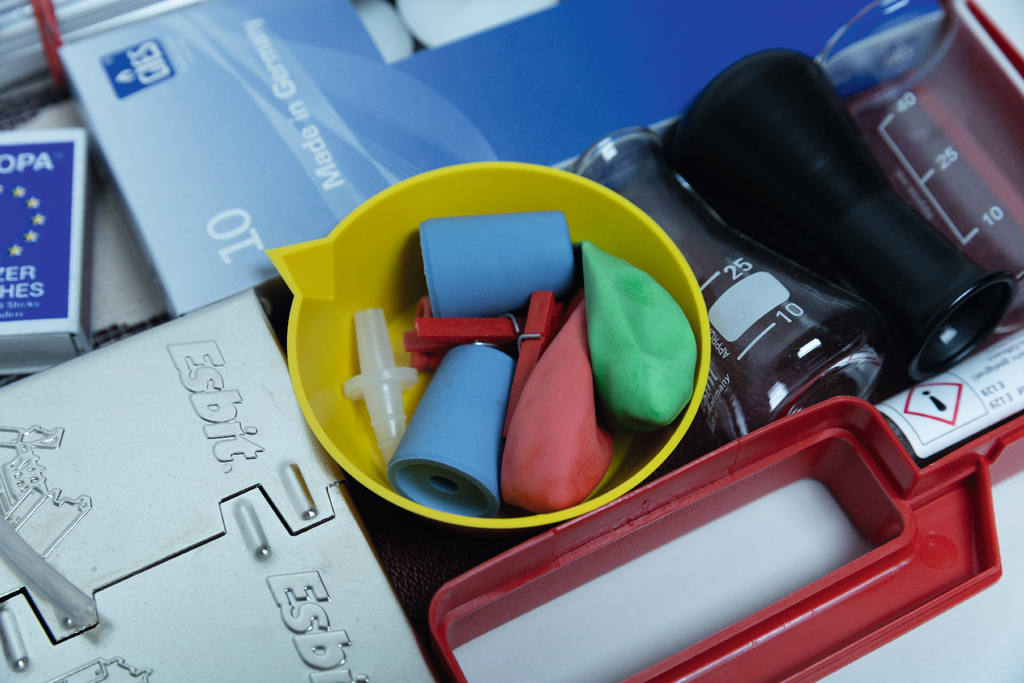

The picture shows a yellow bowl with various office and experimental materials, including colorful rubber balls, a spray gun and several measuring cups. In the background you can see other utensils that are used for experimental applications in the educational field.
mehr

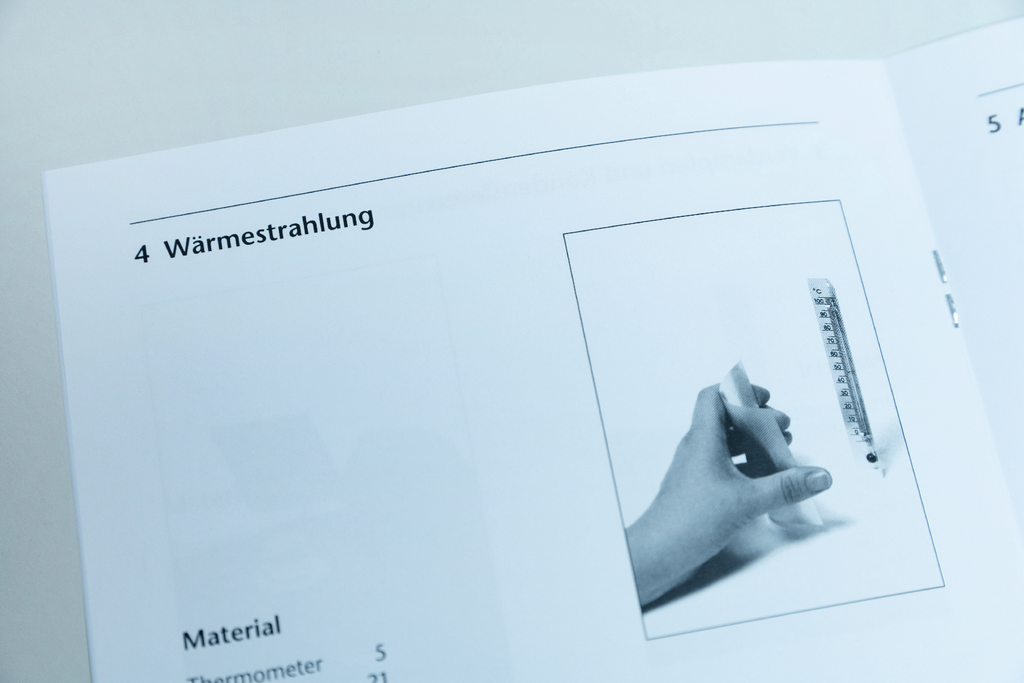

The picture shows a handheld thermometer scale that is used to measure heat radiation. Above it is the title "Heat radiation", which indicates the object of investigation.

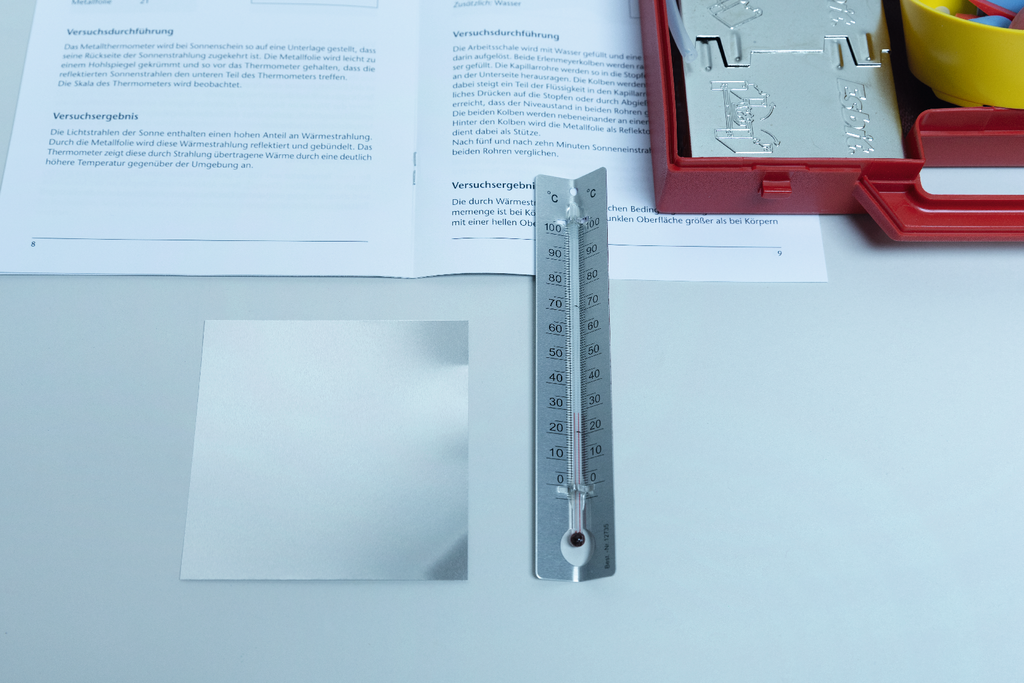

The picture shows a thermometer, a silver metal sheet and an open manual on a table. The materials are part of an experiment that deals with the conduction of heat and the reflection of light rays.

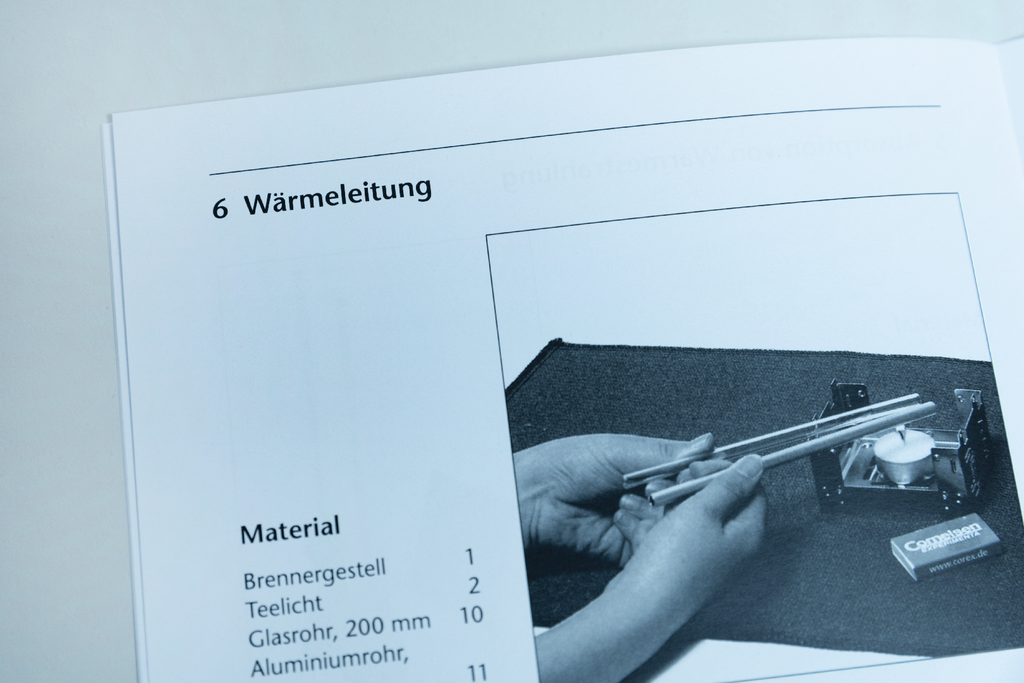

The picture shows instructions for experimenting with heat conduction, in which two glass tubes are held in the hands. In the background, a tea light and a burner frame can be seen on a work surface.

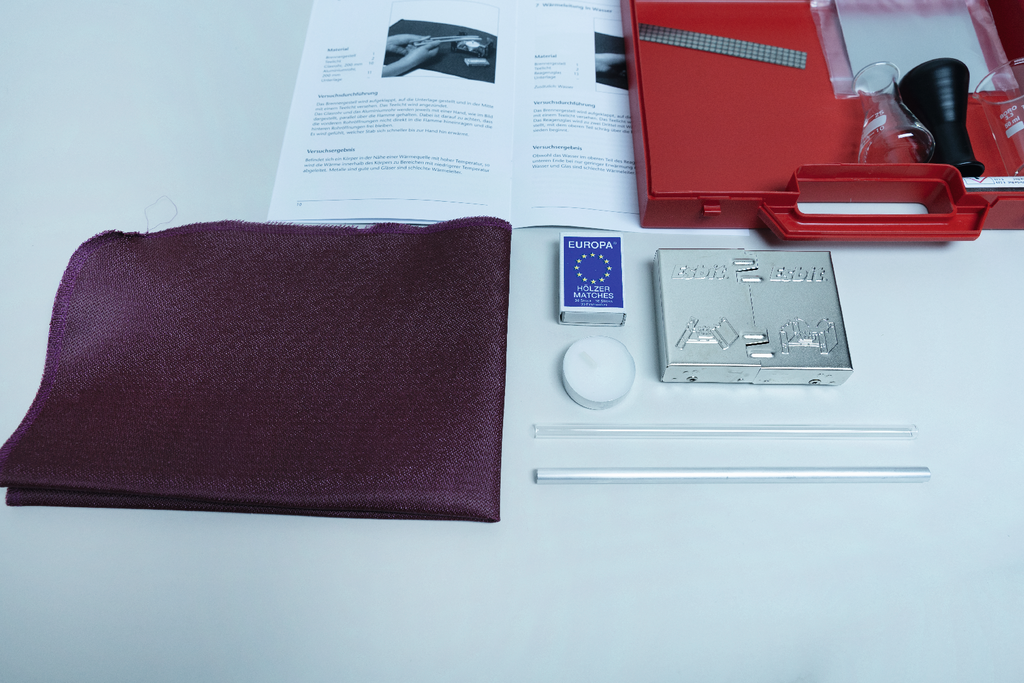

The picture shows a collection of experimental materials, including a purple piece of cloth, some test tubes, a candle, a matchbook and a metal box. These materials are arranged in a red box, accompanied by a manual with A

item number 16106

order
Share product on:

Technical specifications

Size of kit: 270 x 210 x 50 mm

Illustrate how a thermometer works.


Function of a thermometer we observed.


Investigation of changes in the state of aggregation of water.


Study of thermal radiation and its effect.


The different degree of absorption of heat on different colors is tested.


Study of the thermal conductivity of various materials.


Investigate the thermal conductivity of water.


The change of air volume under temperature change is studied.


Effects of temperature on water vapor are studied.


The change in shape of different metals is observed.


  • 1 × Heat protection gauze
  • 1 × Glass tubing, straight, 200 mm
  • 1 × Aluminium tube, 200/8 mm
  • 1 × Tube coupling
  • 1 × Balloons with reinforced surface tension
  • 1 × Silicone tubing, 3/1 mm
  • 1 × Heat-resistant pad
  • 1 ×
  • 1 × Dropping pipette, plastic
  • 1 × Dye (food colouring), red
  • 1 × Burner
  • 1 × Matches
  • 1 × Thermometer student type –5 to +100 °C
  • 2 × Rubber stopper with 6 mm bore
  • 1 × Water basin, plastic, 80 mm dia.
  • 1 ×
  • 1 ×
  • 1 × Erlenmeyer flask, Duran 25 ml
  • 1 × Beaker, Duran, tall form, 50 ml
  • 1 × Lidfoam R3, grey 260x200x10 mm
  • 2 ×
  • 1 ×
  • 2 ×
  • 2 ×
  • 10 ×
  • 1 ×
