# Mini-Kit ‘Mechanics’

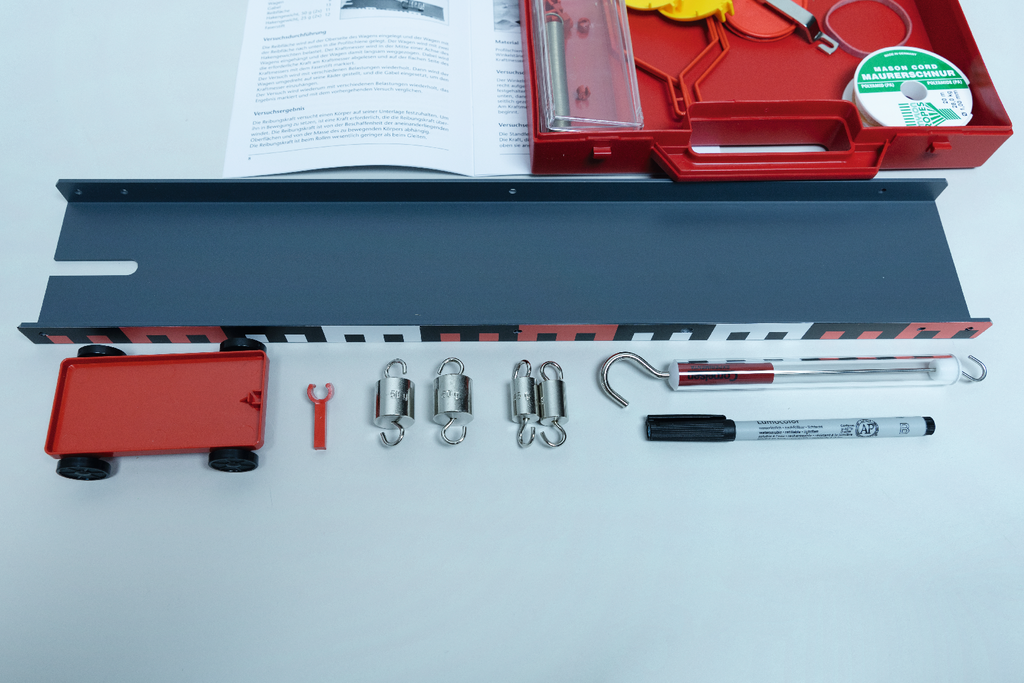

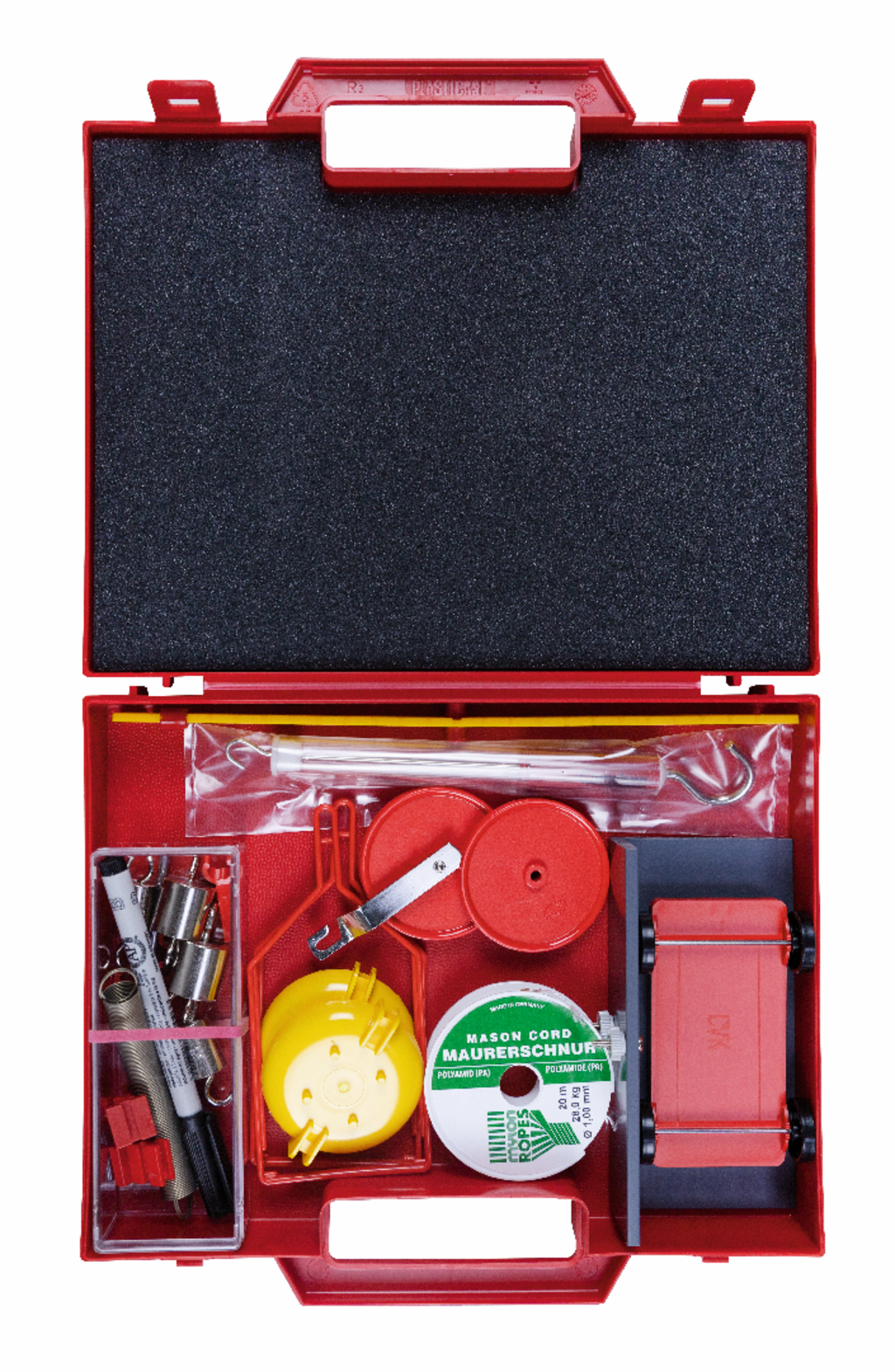

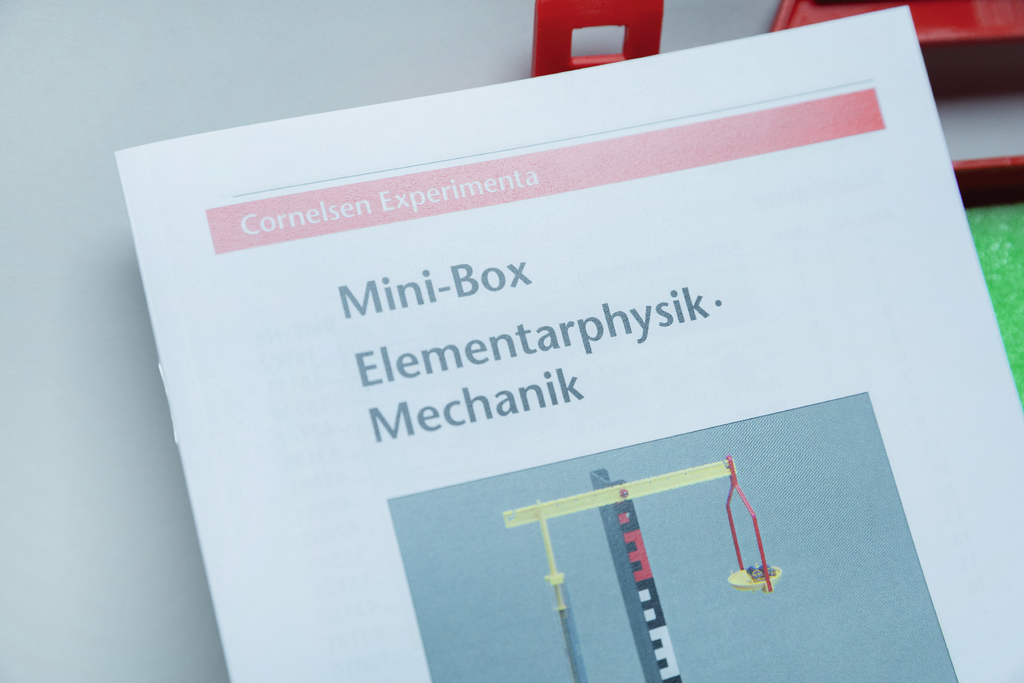

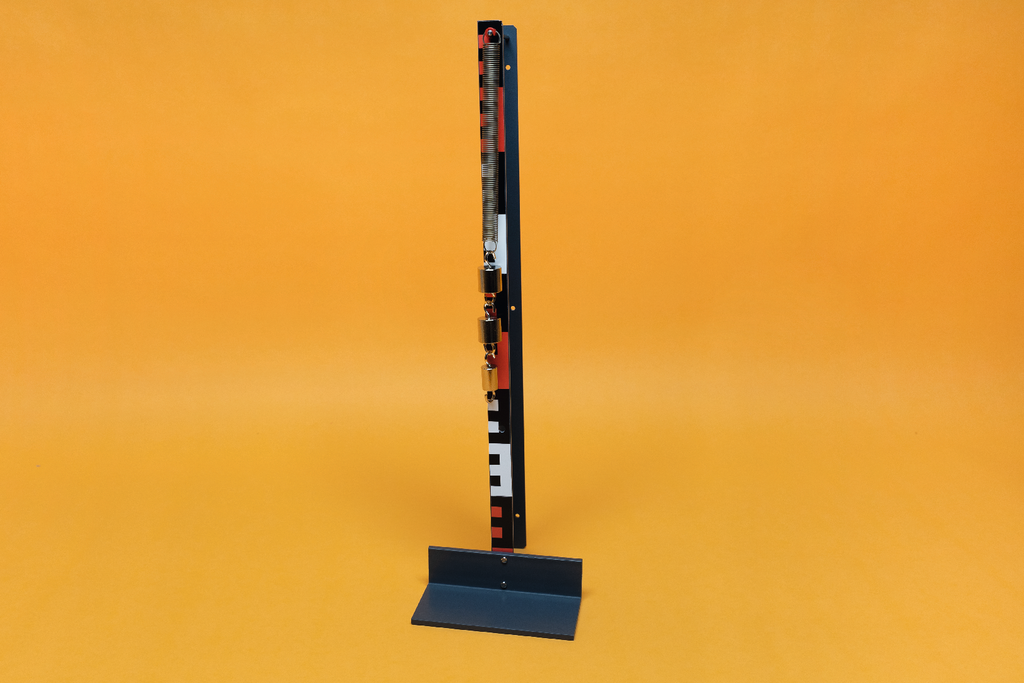

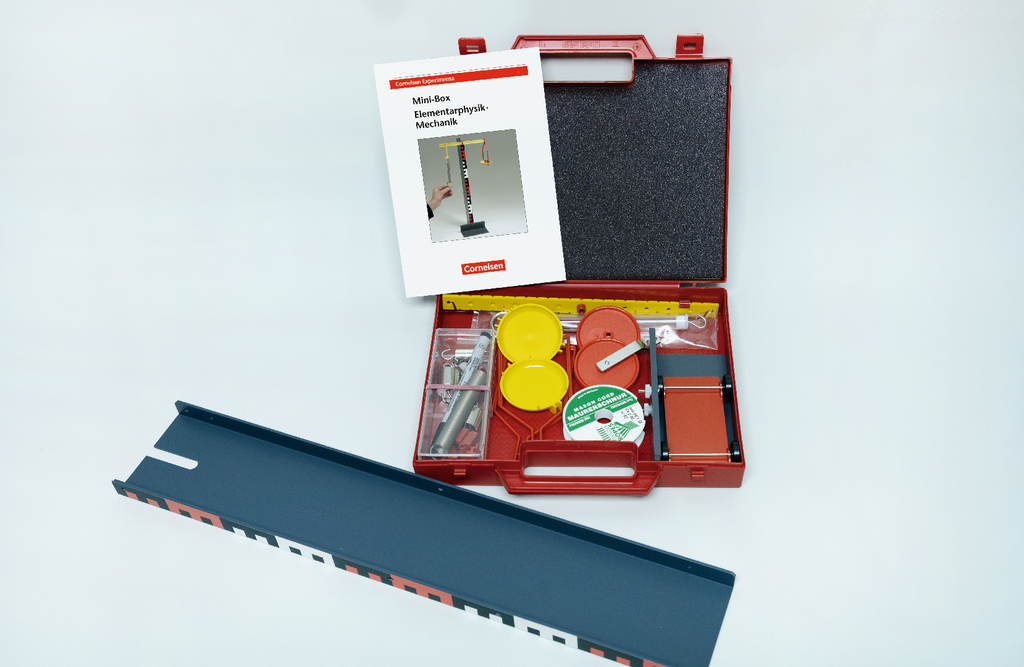

The kit contains a comprehensive manual and 17 different items for multiple use e.g. a rail profile, a stand base, a car, a dynamometer, pulleys, masses with hooks and scale pans.
Size of kit: 270 x 210 x 50 mm

Age 8-14
Materials for 1 work group or demonstration

Art. no. 16100

Share product on:
further product description

### Technical specifications

Size of kit: 270 x 210 x 50 mm

experiments
• 1 - Effect of force

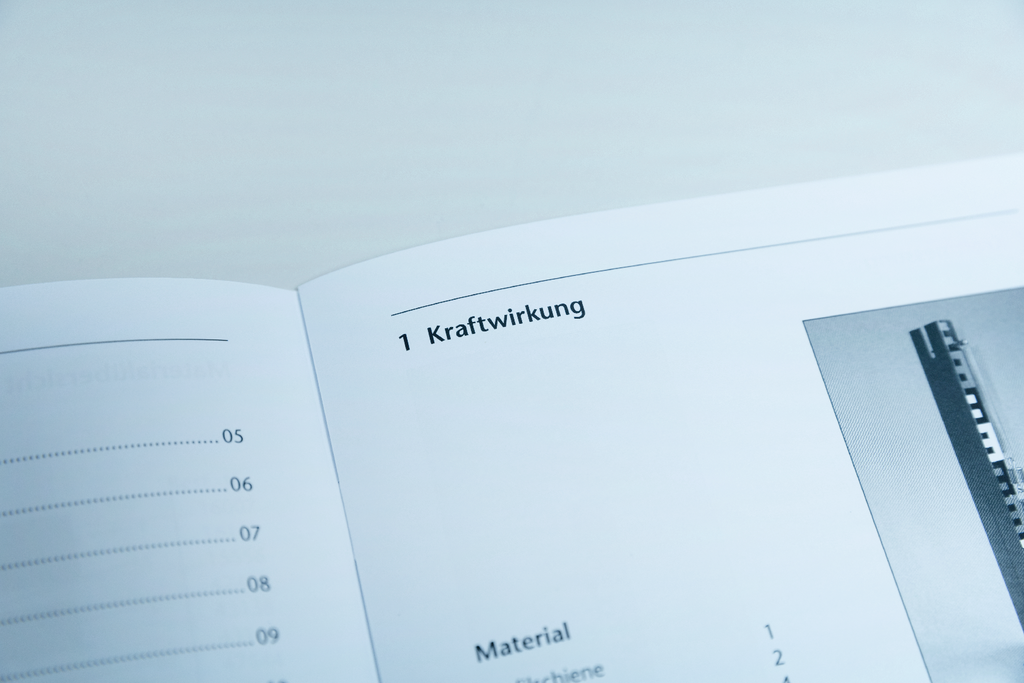

### experiment "Effect of force"

Introduction to the effect of force and how it is measured.

• 2 - Spring balance

### experiment "Spring balance"

Explanation of how the mass of a body is measured.

• 3 - Main emphasis

### experiment "Main emphasis"

Finding the center of gravity of a body.

• 4 - Fixed Roll (1)

### experiment "Fixed Roll (1)"

Investigate forces and masses on the roller.

• 5 - Force measurement

### experiment "Force measurement"

Explanation of how the force is measured.

• 6 - Friction forces

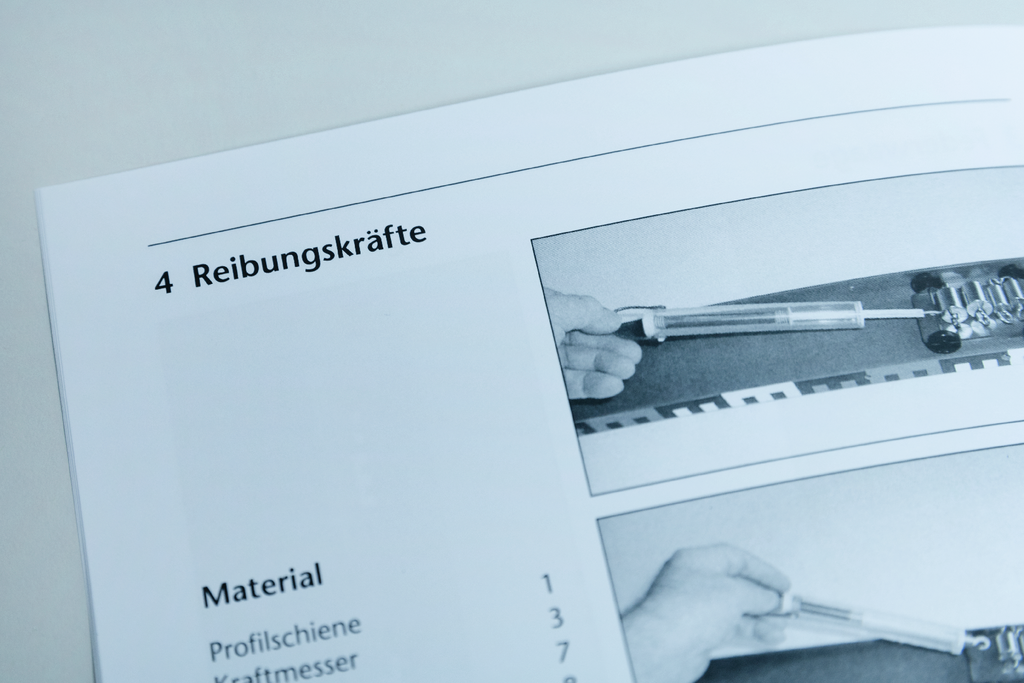

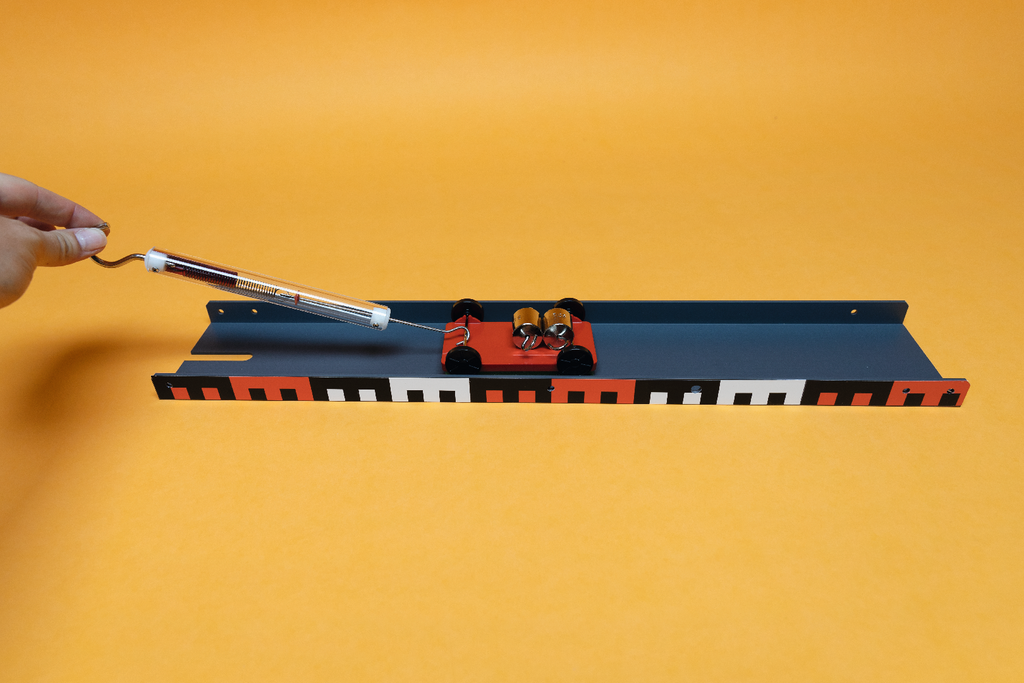

### experiment "Friction forces"

Investigate friction during sliding and rolling.

• 7 - Stability

### experiment "Stability"

Investigating the stability depending on the point of application of the force.

• 8 - Beam balance

### experiment "Beam balance"

Comparison of masses is observed.

• 9 - Two-sided lever

### experiment "Two-sided lever"

Explanation of the lever laws on the two-sided lever.

• 10 - One-sided lever

### experiment "One-sided lever"

Explanation of the lever laws on the one-sided lever.

• 11 - Running weight scale

### experiment "Running weight scale"

Possibility of a scale with unequal arms is explained.

• 12 - Fixed Roll (2)

### experiment "Fixed Roll (2)"

Compare ratios of masses related to equilibrium.

• 13 - Loose roll

### experiment "Loose roll"

Force measurement on the loose roller.

• 14 - Loose and fixed pulley (pulley block)

### experiment "Loose and fixed pulley (pulley block)"

Determination of the balance of power in the block and tackle.

• 15 - Inclined plane

### experiment "Inclined plane"

Investigate the forces on the inclined plane.

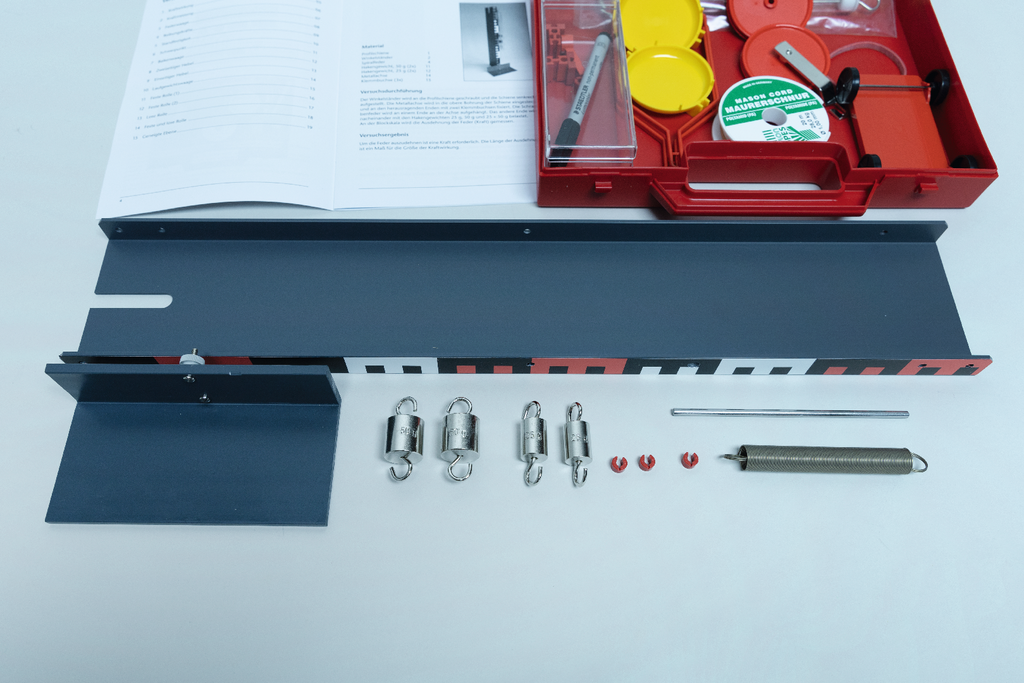

scope of supply
• 1 × Plastic box 140/50/35 mm
• 1 × Spring scale, 75 g, red
• 1 × Rail profile, 495 mm with bores
• 1 × Friction pad (foam) 95/45/10 mm
• 1 × Angled stand base
• 1 × Lever with three bores and clamp socket
• 2 × Clamp block
• 1 × Felt pen, water soluble
• 1 × Carton for plastic box R3270x230x55 mm (int.dim.)
• 1 × Plastic box R3 260x197x55 mm
• 1 × Foam cutting, green, 145 x 80 x 20 mm
• 1 × Spring 100 mm / 12 N

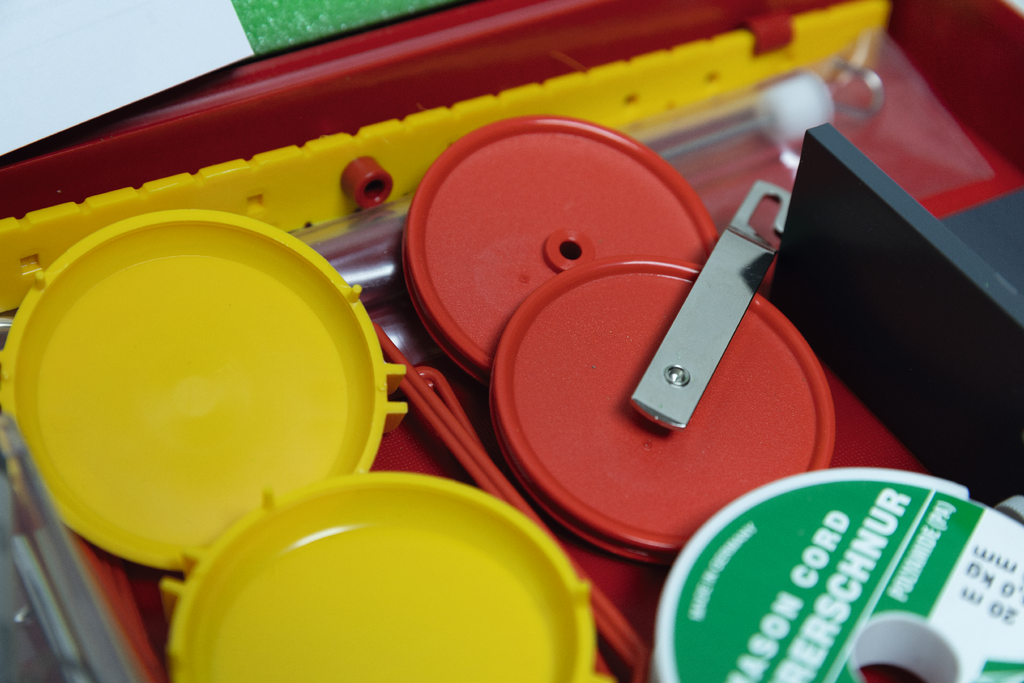

• 1 × Pulley, unmounted, 58 mm dia.
• 1 × Loose pulley, 58 mm dia. with one hook
• 1 × Lidfoam R3, grey 260x200x10 mm

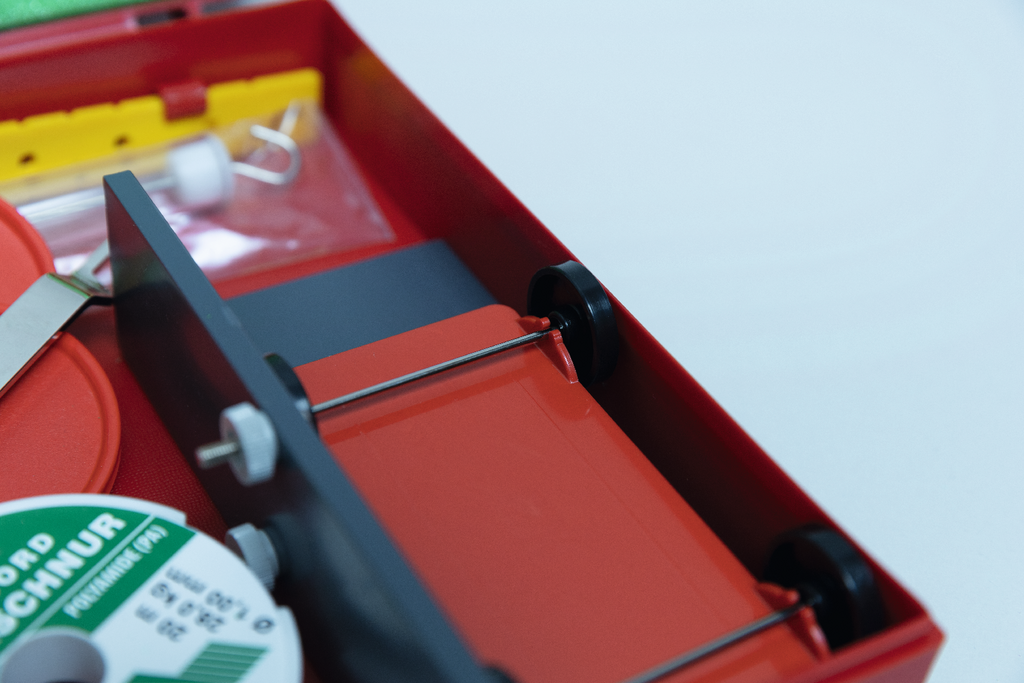

• 1 × Propulsion vehicle
• 1 × Demonstration cord 20 m, 1 mm Ø
• 4 × Tubular clip, 5x4 mm
• 1 × Metal axis, 125 mm
• 2 ×
• 2 ×
• 1 ×
• 2 ×
• 2 ×
• 1 ×
