Primary natural science

Students kit Electrical circuits


Children experience electricity everywhere in their everyday life. This kit helps to explain how electricity is used to produce light, heat and motion.
Children will also learn that electricity can flow under certain conditions only.

The topics covered include the following:

  • Open and closed circuits
  • Series and parallel connections
  • Conducting and non-conducting materials
  • Dangers of electric current
  • How electricity gets to your home


Teacher’s manual ‘Experiments in workstations: Electric circuits
With copy templates covering 33 workstations

Age 9-10
Materials for up to 33 workstations (for 33 children at least)

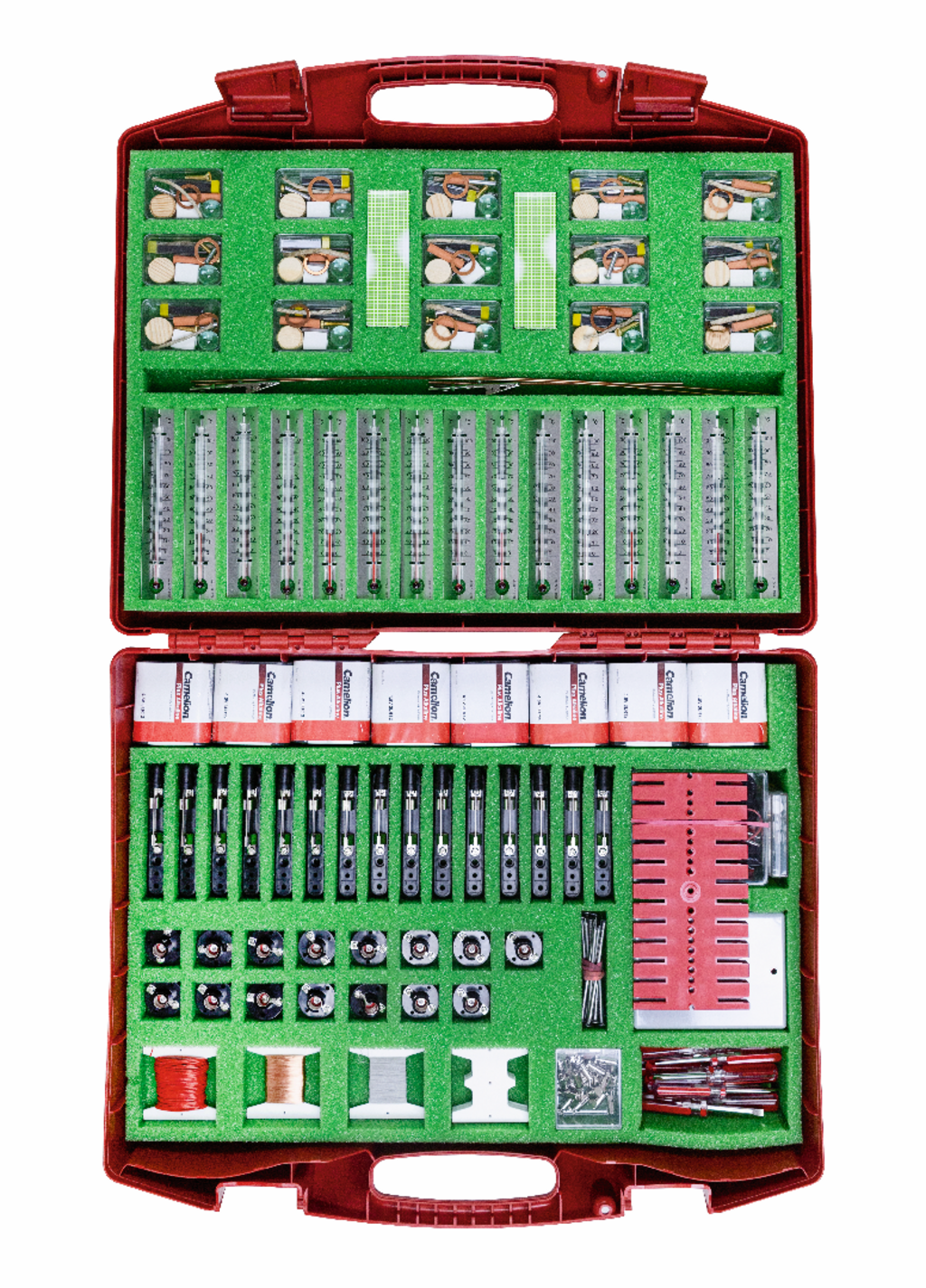

The picture shows a comprehensive experiment kit packed in a red case. It contains various components such as tracks, batteries, wires and mechanical parts that can be used for various educational experiments.
The picture shows a comprehensive experiment kit packed in a red case. It contains various components such as tracks, batteries, wires and mechanical parts that can be used for various educational experiments.
The picture shows a red case set for experiments in the field of electrical engineering, which contains various components and materials for carrying out electrical circuit projects. There is also an instruction manual that explains design options and experiments.
The image shows instructions for an experiment in which students conduct a car lighting test. It lists the materials needed, such as flat batteries, terminal blocks, and a light bulb, to explain the setup.
The picture shows an experiment kit for the German education system, which contains various red components, including circuits and wheels, as well as a manual for instructions. The components are arranged in a red box and offer the possibility of
The picture shows instructions for an experiment called "The Robot Game" found in an electronics textbook. It contains a list of the materials needed and brief instructions for building a simple electromagnetic device.
The picture shows various experiment materials, including a coil of copper wire, two nails, a connector and a battery. There is also a textbook with instructions on electrical circuits lying nearby.
The picture shows a Camelion brand 4.5V alkaline battery combined with a metal pin and other wire connections. This arrangement could be used for simple electrical experiments or educational circuit projects.
The picture shows a student set on the topic of electrical circuits from the Cornelsen Experimenta range. The cover of the booklet shows two children experimenting, while next to it is an overview of the material it contains.
The picture shows an arrangement of thermometers in a green foam insert, intended for use in education. The thermometers are clearly labeled and enable precise temperature measurements.
The image shows a number of experimental measuring instruments arranged in a green, foam-padded container. In the background, several batteries that can be used for the devices are visible.
The picture shows a red storage box with green foam in which several transparent, red test tubes are stored. In addition, small compartments are visible in the upper part of the box, which contain various accessories.
The picture shows a set of experimental materials organized in a green padded case. It contains various components such as light bulbs, screws and small objects for experimental purposes in educational settings.
The picture shows instructions for wiring a socket with a light bulb in a circuit. It explains how to clamp the wires correctly to make an optimal connection.

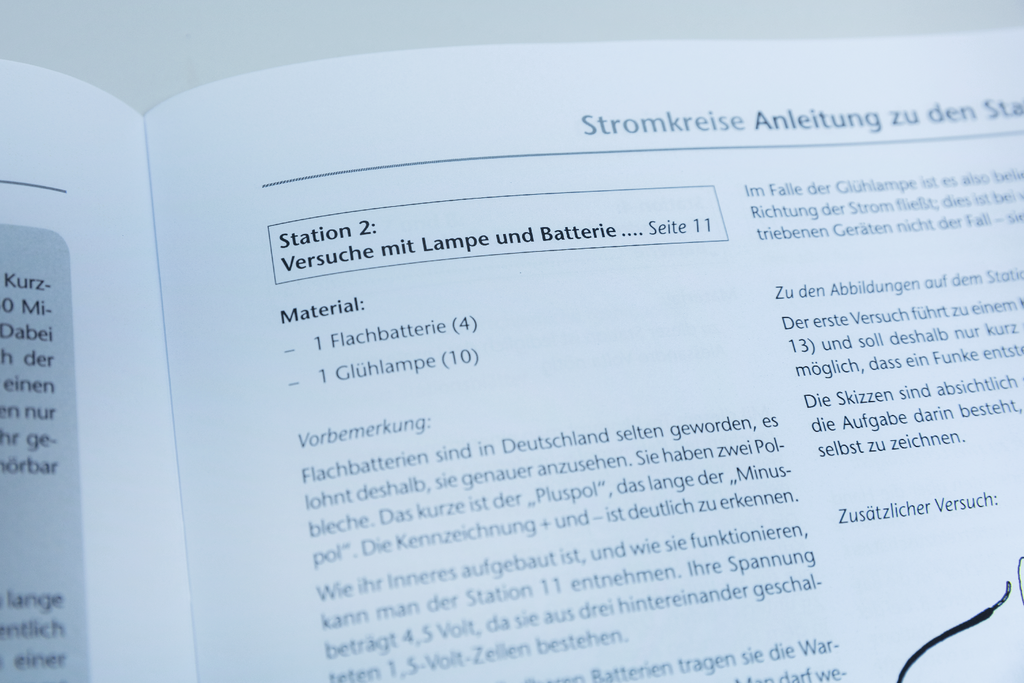

The picture shows instructions for experiments with a lamp and a battery from a textbook for the German education system. It lists the materials needed, including a flat battery and a light bulb, as well as important information on the D
The picture shows an experiment set for electrical circuits from Cornelsen, which includes a battery and a light bulb. Next to it is an instruction manual that describes various connection options and experiments.

item number 31772

Share product on:

Technical specifications

Size of kit: 540 x 450 x 150 mm

The children repeat the insights about handling batteries and light bulbs from station 2 and they learn to assess the condition of batteries.


The children usually bring the “old” batteries they need from home. On average, five dead batteries can be found there. Since the "residence time" of batteries in households is four years on average according to the statistics of the GRS battery take-back service, it is conceivable that copies that have already "expired" are brought along.


The aim of these two stations is to become aware of how many lamps can be found in our households and the different shapes they have.


In terms of goals, this suggestion is similar to Station 15, but the technical problem lies less in the stability of the connections than in the narrowness of the pencil case. Even if you have partially cleared them out, the binding posts are not easy to attach in such a way that they fit in your pocket and do not cause a short circuit.


The children build a milk carton ship out of a milk carton, which they lower into the water (in a tub).


The installation of lighting in vehicles (station 18) always awakens the desire to mount two lamps. This created a motivating situation to deal with series and parallel circuits.


With the double-sided station sheet 20, the children practice something very important, troubleshooting.


This suggestion complements the experimental setup of Station 16.
It is a worthwhile task to realize how many switches one encounters at home - Station 22 encourages this.


Here, what the children recognized from the lever switch in the box is transferred to three switch types that are common in the household: a “gap” in a circuit is always closed or opened.


The children get to know heating wires and test them out on a pole plate.


The "trembling roller coaster" is called that because of its shape and because you need a steady hand if you don't want to light up the lamp while you are guiding the loop along the track. The very making of this game leads to an exploration of the simple electric circuit. The point of using it is not to close the circuit.


If you touch the pole plate with the free end of the wire, the wrapped nail becomes magnetic - it has become an electromagnet. From this you can make different games ... With it you can z. B. Carefully pick up another nail. If the current flow is interrupted, the magnetic force is released and the "load" falls off when it is heavy enough.


Children are encouraged to light up the lightbulb in different ways. This task has two solutions, once the long pole sheet (minus) touches the contact plate and the short pole sheet (plus) touches the thread and vice versa.


With this text about Alessandro Volta, a recurring framework plan requirement is met, to acquaint the children with "researchers" and "inventors" or even namesakes.


Children who deal with Station 11 in partner work develop an elementary school idea of ​​what is happening in the battery. It will be deepened later in secondary school.


The suggestion encourages the children to set up a simple electrical circuit and make it so stable that it works safely even with violent movements.


The "test" leads to a lasting examination of the children with the question of the technically correct, mechanically stable connection of the lamp.


Many outline plans suggest building your own switches. The children can make or apply elementary experiences. The station sheet encourages you to try out two different switch types, the rotary switch and the button.


The children study bicycle lighting technology.


The aim of dealing with this text is to know the danger that comes from currents over 9 volts. In many cases, they are referred to in writing.


To answer this question experimentally, the substances contained in the collection of small items are tested. The station sheet shows which material is involved.


  • 1 × Copper wire, half-hard 2 mm Ø (200 mm long)
  • 2 × Copper wire, supple 1,5mm(450 mm long)
  • 1 × Plastic base, grey with two terminals, 120x90 mm
  • 1 × Plastic case ca.540x450x150 mm
  • 1 × Storing diagram,int.vers.
  • 1 × Foam insert 2 for 31772, 515x360x70 mm
  • 1 × Foam insert 1 for 31772, 515x350x55 mm
  • 2 × Crocodile clip with 4 mm plug
  • 1 × Wooden board, 120x90 mm
  • 1 × Glue, paper clips and thumbtacks in a small box
  • 1 × Construction set for vehicle
  • 15 × Set of assorted material samples
  • 1 × Heating wire , covered, 0,20 mm Ø (20 m)
  • 1 × Copper wire varnished, 0,25 mm Ø (60 m)
  • 1 × Copper wire with insulation (20 m)
  • 7 × Spool for keeping wire, 60x60 mm
  • 15 × Knife switch, single polesingle throw
  • 15 × Screw driver 110 mm
  • 32 × Terminal clip, 7 mm (Pole clamp)
  • 15 × Bulb holder MES
  • 2 × Bulb MES 3,5 V / 0,2 A (10 pcs.)
  • 15 × Battery cell, 4,5 V 3R12
  • 15 × Thermometer student type –3°C to +103°C
  • 1 × Plastic box 60x50x30 mm
