Electronic Switch

Control and expand electrical circuits digitally

Use: Digital control of electrical circuits and experiments in science and technology lessons

The Electronic Switch enables the digital control of DC circuits and can be integrated directly into a DC circuit without an additional operating voltage. It can be combined with various experimental materials, for example from the electricity range.

Using a mini controller, both simple electrical circuits and time-controlled or sensor-controlled relay circuits can be controlled. According to the product description, this allows devices such as spotlights, loudspeakers or electromagnets to be operated directly.

The 4 mm socket-and-plug combination allows the Electronic Switch to be used in standard plug-in systems with a 19 mm grid. It can be inserted and connected in the same way as other components.

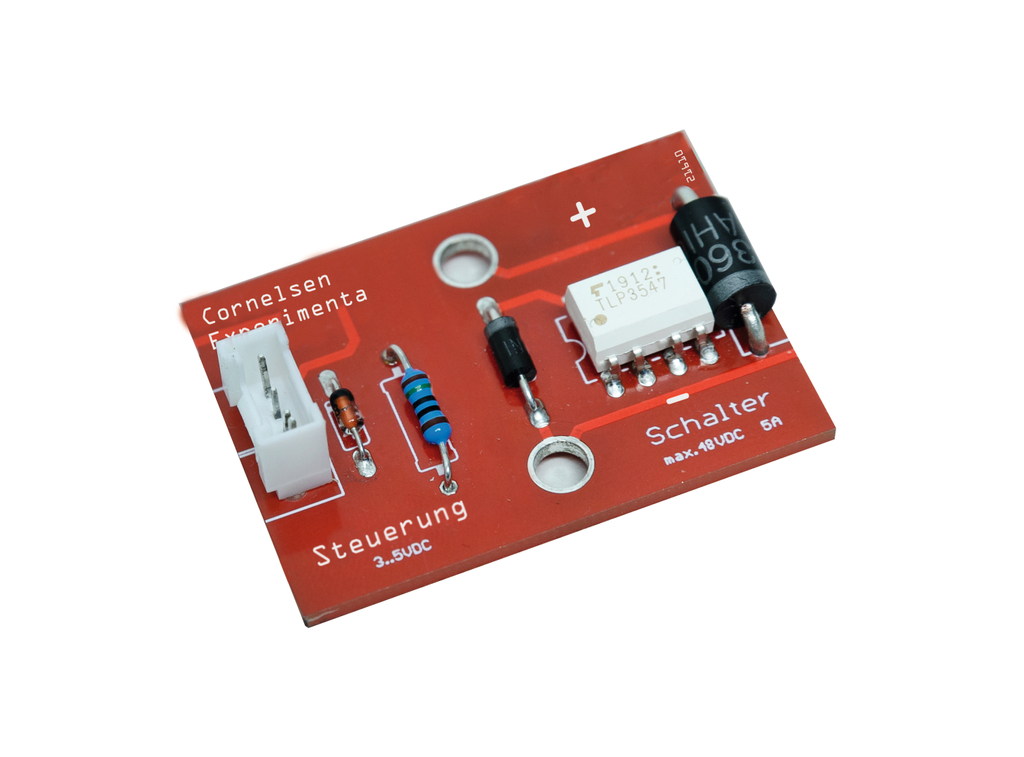

The picture shows a red circuit board with several electronic components, including resistors, transistors and a switch. The plaque is designed for educational use and has labels for control and maximum voltage values.
The picture shows a red circuit board with several electronic components, including resistors, transistors and a switch. The plaque is designed for educational use and has labels for control and maximum voltage values.
The picture shows a red circuit board that is part of an experiment kit, with various electronic components such as resistors and a switch. Labels on the board indicate the functionalities and voltage values of the components.
The picture shows an electronic experiment board with a central board in the shape of a star that contains various electronic components. The board is connected to a battery compartment and control elements that can be used to conduct experiments in educational settings.
mehr
The image shows a red electronic board with various components, including connectors and resistors, that can be used for educational experiments. A connected cable connection is in the foreground, which could be used for control.

item number 21610

order
Share product on:

recommendations

eXperiBot - a learning robot from Cornelsen for your lessons
eXperiBot Explorer
eXperiBot Explorer is the perfect learning robot for your classroom: super quick to assemble and ...
item number 72601

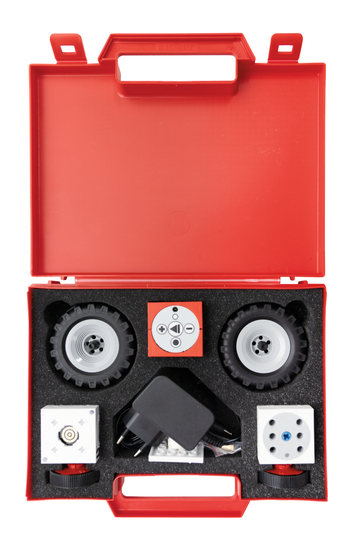

The picture shows a red suitcase filled with various robotics components, including two wheels, a controller and a power supply. All parts are arranged in a black foam insert to protect them and facilitate organization.
